RGBO Element node

Left Toolbar > Math icon Math Nodes > Number Rgbo Element icon Rgbo Element

The RGBO Element node provides each channel information as an output. RGBO output: Red Green Blue Opacity.

Procedure

To generate a rgbo element node in the node graph:

  1. On the left toolbar choose Point Nodes Math icon > Point Rgbo Element Math Rgbo Element icon

  2. Drag the Rgbo Element icon into the Node Graph.

    Math Rgbo Element node

  3. Connect the Output .

Inputs

rgbo A RGBO type.

Outputs

red

green

blue

opacity

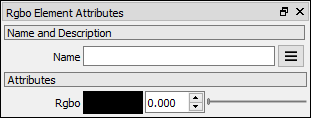

Attributes Panel

Math Rgbo Element attributes

Rgbo

This attribute is exposed as input by default. Right-click the Node to hide this attribute as input and set the point values manually. Default R:0.0, G:0.0, B:0.0, O:0.0
