Mesh Hard Edges node

Left Toolbar > 3D icon 3D Nodes > Mesh Position icon Mesh Hard Edges Node

The Mesh Hard Edges node draws the hard edges of the models with a defined color, or with a normal texture that smooths the transition between the two hard surfaces to create a smoother edge that resembles a chamfer.

models Model TriS Model

Mesh Hard Edges Color color

Mesh Hard Edges Normal normal

Models TriS Model


To create a Mesh Hard Edges image:

  1. Load one of more model in the Scene Window.

  2. On the left toolbar choose 3D Nodes > Mesh Normal Angle. 3D icon > Mesh Hard Edges icon

  3. Drag the Mesh Hard Edges icon into the Node Graph.

    Mesh Normal Angle node



An image where the hard edges have been drawn with a defined color and width.


An normal image where the hard edges have been drawn with a smoother normal that simulates a small chamfer or fillet between the two hard surfaces.

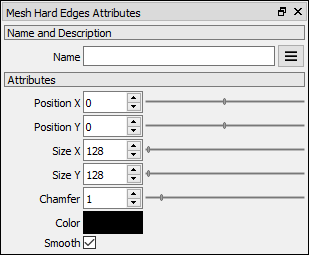

Attributes Panel

Mesh Hard Edges attributes

Position X Position X of the output image.

Position Y Position Y of the output image.

Size X Size X of the output image.

Size Y Size Y of the output image.

Vector X Coordinate x of the vector.

Chamfer The size of the chamfer.

Color The color of the chamfer in the color image.

Smooth If checked creates a smoother transition at the chamfer.
