Align node

Left Toolbar> Layout icon Layout Nodes> Align icon Align

The Align node aligns one or more images to a image viewport guide line.

input
In0 4 images and an image viewport guide line (blue).

output
In0 4 images aligned to the viewport guide line.

Procedure

To align multiple images:

  1. On the left toolbar choose Layout Nodes > Align. Layout icon > Align icon

  2. Drag the Align icon into the Node Graph.

    Align icon

  3. Connect the oputput of the images to be aligned into the Img input in the Align node.

  4. Check the Horizontal or Vertical checkbox.

  5. Click the Pick Horizontal icon or Pick Horizontal icon and pick a viewport image guide line. Note: To create viewport image guide lines click on the image viewport ruler and drag into the viewport while holding the Alt key.

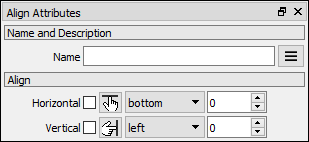

Attributes Panel

Align attributes

Horizontal
checkbox: If checked, the images are aligned. Pick button: Click this button to enable the image viewport mouse mode to pick and select a guide line for alignment. Direction: Defines the direction of alignment. Offset: Offsets the alignment by a few pixels.

Vertical
checkbox: If checked, the images are aligned. Pick button: Click this button to enable the image viewport mouse mode to pick and select a guide line for alignment. Direction: Defines the direction of alignment. Offset: Offsets the alignment by a few pixels.
