Linear Array node

Left Toolbar > Layout Nodes > Mix

The Linear Array node copies the input image multiple times in X and Y.

input

output
Image array with 4 tiles with a 35 pixels delta.

Procedure

To create a linear array of images:

1. On the left toolbar choose Layout Nodes > Linear Array. >

2. Drag the Linear Array icon into the Node Graph.



3. Connect the oputput of the images to be copied int the linear array.

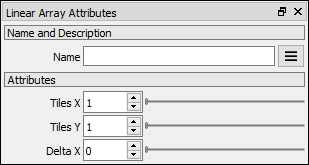

Attributes Panel

Tiles X
Sets the number of times to repeat the image in X.

Tiles Y
Sets the number of times to repeat the image in Y.

Delta X
Sets the distance in pixels in X between the left-bottom corner of an instance, and the next one.

Delta Y
Sets the distance in pixels in Y between the left-bottom corner of an instance, and the next one.
