Texture Select node

Left Toolbar > Texture icon Texture Nodes > Texture Select icon Texture Select node

The Texture Select node takes 3 textures as input, texture A, texture B and a control texture. Based on the control texture and the threshold values, the Select texture displays texture A, texture B or a mix of texture A and texture B.

input
Tex Tex A A procedural Billow texture.

input
Tex Tex B A procedural Perlin texture.

input
Tex Control A procedural Voronoi texture.

output
In2 Tex The procedural Billow and Perlin textures with a Texture Select and the Voronoi control texture, with a low value of 0.25, high of 0.6 and falloff of 0.2.

Procedure

To apply a Texture Select:

  1. On the left toolbar choose Texture Nodes > Texture Select. Textures icon > Texture Select icon

  2. Drag the Texture Select icon into the Node Graph.

    Texture Select node

  3. Adjust the attributes of the Texture Select node.

Preview

Procedural textures are not displayed in the Image Viewport. To preview procedural images use the Texture Preview window, and to convert them to raster images use the Render Texture node.

Inputs

Tex A
A procedural texture node.

Tex B
A procedural texture node.

Control
A procedural texture node.

Outputs

Tex
A procedural texture.

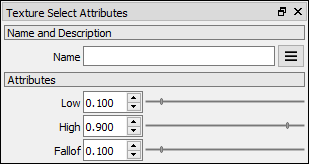

Attributes Panel

Texture Select attributes

Low
Defines the low threshold value in the control image.

High
Defines the high threshold value.

Falloff
Defines the falloff or region where the textures A and B are mixed.
