Emboss node

Left Toolbar > Filter icon Filter Nodes > Emboss icon Emboss node

The Emboss node applies an emboss filter to the input image, replacing each pixel with a highlight or shadow value.

input
In0 Img

output
Out0
Image with an emboss filter of 45 degrees.

Procedure

To Emboss an image:

  1. On the left toolbar choose Filter Nodes > Emboss. Filter icon > Emboss icon

  2. Drag the Emboss icon into the Node Graph.

    Emboss node

  3. Connect the output of an image node into the image input in the Emboss node.

  4. Adjust the attributes of the Emboss node to modify the output image.

Inputs

The Image to be embossed.

Outputs

The embossed image.

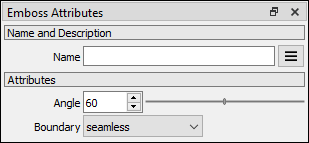

Attributes Panel

Emboss attributes

Angle
The angle in degrees from where the light source is coming.

Boundary
The boundary conditions of the emboss filter.
Seamless: Pixels are repeated from the other side of the image, generating an output image that can be tiled.
Mirror: Pixels are mirrored from the same side of the image.
Border: Border pixels are repeated.
