The Pyramid node generates a height, normal, and mask set of images of a pyramid shape.

output
Add Text height Add Text normal Add Text mask

Procedure

To create the pyramid images:

  1. On the left toolbar choose Generator Nodes > Pyramid. Generate.png > PixaFlux Generate Pyramid

  2. Drag the Pyramid icon into the Node Graph.

    Pyramid_Node

  3. Adjust the attributes of the Pyramid Node to modify the shape of the pyramid.

Outputs

height
The pyramid height image. normal
The pyramid normal image mask
The pyramid mask image

Attributes Panel

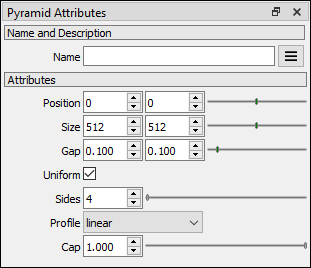

 PixaFlux Generate Pyramid  Attributes

Position
Default values X:0, Y:0.

Size
Width Default: 800 px. Height Default: 600 px. Drag marquee at corners to change its size, or type values.

Gap
Relative gap between the borders of the image and the pyramid.

Uniform
If checked, the pyramid base is inscribed in a circle. If unchecked, the pyramid fills all the available area.

Sides
Number of sides.

Profile
Profile of the sides: linear. Flat sides. smooth. Smooth sides. arcout. Rounded out sides. arcin. Rounded in sides.

Cap
Relative position of the pyramid cap.
