Generate - Revolve

Left Toolbar > Generate Nodes > Revolve

The Revolve node generates a height, normal, and mask set of images of a surface of revolution shape.

output
height normal mask

Procedure

To create the surface of revolution shape images:

1. On the left toolbar choose Generator Nodes > Revolve. >

2. Drag the Revolve icon into the Node Graph.



3. Adjust the attributes of the Revolve node to modify the shape of the surface of revolution.

Outputs

height
The surface of revolution height image. normal
The surface of revolution normal image mask
The surface of revolution mask image

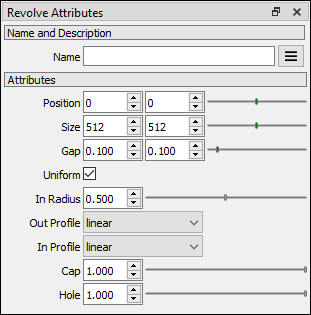

Attributes Panel

Position
Default values X:0, Y:0.

Size
Width Default: 800 px. Height Default: 600 px. Drag marquee at corners to change its size, or type values.

Gap
Relative gap between the borders of the image and the revolve.

Uniform
If checked, the surface of revolution is circular. If unchecked, the surface of revolution fills all the available area.

In radius
Inner radius of the surface of revolution.

Out Profile
Profile of the outer side of the surface: linear. flat sides. smooth. smooth sides. arcout. rounded out sides. arcin. rounded in sides.

In Profile
Profile of the inner side of the surface: linear. Flat sides. smooth. Smooth sides. arcout. Rounded out sides. arcin. Rounded in sides.

Cap
Relative position of the surface of revolution cap.

Hole
Relative depth of the hole.
