Boolean Xor node

Left Toolbar > Math icon Math Nodes > Boolean Xor icon Boolean Xor

The Boolean Xor node allows you to apply and XOR operation to two boolean values in the node graph.

Procedure

To add a Boolean Xor Node Value to the node graph:

  1. On the left toolbar choose Math Nodes > Boolean Xor. Math icon > Math Boolean Xor icon
  2. Drag the Boolean Xor icon into the Node Graph. Math Boolean Xor node
  3. Connect the Output: boolean.

Inputs

boolean a The boolean value.

boolean b The boolean value.

Outputs

boolean The boolean value.

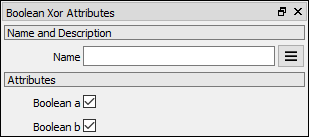

Attributes Panel

Math Boolean Xor attributes
