Mesh Blobs 3D Texture node

Left Toolbar > 3D icon Mesh Nodes > Mesh Curvature

The Mesh Blobs 3D Texture node generates a 3D texture from a random set of metaball spheres of random radiuses that generate smooth blobs.

input
Mesh Position Model

output
Mesh Blobs Curvature

Procedure

To generate a Blobs 3D Texture image from a Mesh:

  1. Load a Model into the Scene.

  2. On the left toolbar choose Mesh Nodes > Greeble 3D Texture. Mesh icon > Mesh Curvature icon

  3. Drag the Mesh Curvature icon into the Node Graph.

    Mesh Position node

Outputs

An image with the baked 3D Blobs Texture.

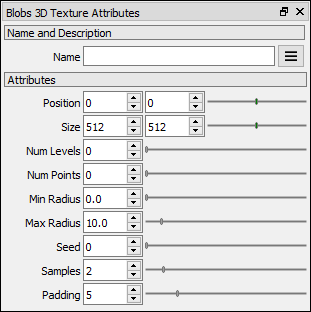

Attributes Panel

Normal Curvature attributes

Position X Position X of the output image.

Position Y Position Y of the output image.

Size X Size X of the output image.

Size Y Size Y of the output image.

Num Levels Number of levels of shading. A value of gives a continuous smooth shading.

Num Points Number of points used as blob seeds.

Min Radius Minimum radius of the metaball spheres.

Max Radius Maximum radius of the metaball spheres.

Seed Random seed.

Samples Number of samples per pixel.

Padding Defines the size of the ring of pixels around the rendered zones, which prevents filtering issues when the model and textures are 3D rendered.
