Surface node

Left Toolbar > 3D icon Mesh Nodes > Surface Filter

The Surface node generates a continous surface from a mesh.

For more information about surfaces see surface workflow.

output
Mesh Filter Out Output surface

Procedure

To convert a mesh to a Surface:

  1. On the left toolbar choose Mesh Nodes > Surface Filter. Mesh icon > Surface Filter icon Surface
  2. Connect the Surface Map node to a Surface value and an Image value.

Mesh Filter node

Outputs

Surface
The surface value.

Attributes Panel

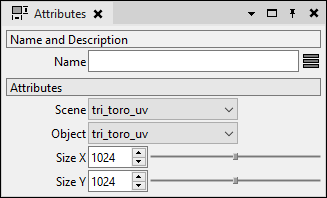

Surface Filter attributes

Scene
The scene that contains the mesh object to be converted to a surface.

Object
The mesh object to be converted to a surface.

Size X
The width of the baked surface texture.

Size Y
The height of the baked surface texture.
