Surface Displace node

Left Toolbar > 3D icon Mesh Nodes > Mesh FilterSurface Displace

The Surface Displace node displaces the texture over the surface.

For more information about surfaces see surface workflow.

input
Surface Displace Image Surface Displace Image Input
Surface Displace Image Surface Displace Direction Input

output
Surface Displace Output Surface Displace Image Output

Procedure

To displace a texture on a Surface:

  1. On the left toolbar choose Mesh Nodes > Surface Group Break. Mesh icon > Surface Groups icon
  2. Connect the Surface Displace node to a Surface value and an Image value.

Mesh Filter node

Inputs

Surface The surface value.

The surface image to be displaced

Direction
The image with the direction strength.

Outputs

Surface
The surface value.

The displaced surface image.

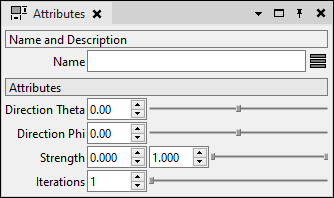

Attributes Panel

Mesh Filter attributes

Direction Theta
Theta angle of the displacement vector.

Direction Phi
Theta angle of the displacement vector.

Strenght
Minimum and Maximum strength of displacement.

Iterations
Number of iterations the breaking process is applied.

Tutorial

This video tutorial shows how to use the Surface Displace node.
