Surface Paint node

Left Toolbar > 3D icon Mesh Nodes > Mesh Filter Surface Paint

The Surface Paint node can be used to 3D paint surfaces.

For more information about surfaces see surface workflow.

input
Mesh Filter In Surface Image

output
Mesh Filter Out Surface Image

Procedure

To paint a Surface:

  1. On the left toolbar choose Mesh Nodes > Surface Paint. Mesh icon > Surface Groups icon
  2. Connect the Surface Map node to a Surface value and an Image value.

Mesh Filter node

Inputs

Surface The surface value.

The background surface image. The color mode of the output image is the same as the color mode of the input image.

Outputs

Surface The surface value.

The painted surface image.

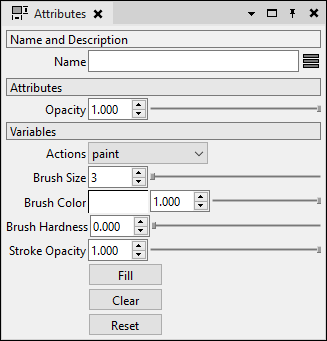

Attributes Panel

Mesh Filter attributes

Opacity
The opacity of the painted layer.

Variables

Action
The painting action to be executed. paint. Paints the surface. erase. Erases painted zones.

Brush size
The size of the brush in surfels.

Brush color
The color of the brush.

Brush hardness
The hardness of the brush.

Stroke opacity
The opacity of the stroke.

Fill
Fills the painted layer with the paint color

Clear
Clears the painted layer.

Reset
Recomputes the combined surface image.
