Surface Reaction Diffusion
The Surface Reaction Diffusion node runs a simulation of two virtual chemicals reacting and diffusing on the 3D surface using the Gray-Scott model.
For more information about surfaces see surface workflow.
input
Image A Input
output
Image A Output
Procedure
To run the Gray-Scott simulation on a Surface:
- On the left toolbar choose Mesh Nodes > Surface Reaction Diffusion. >
- Connect the Surface Reaction Diffusion node to a Surface value and an Image value.
Inputs
Surface
The surface value.
Image A
A surface image that represents the concentrations of chemical A before the simulation is run.
Image B
A surface image that represents the concentrations of chemical B before the simulation is run.
Outputs
Surface
The surface value.
Image A
A surface image that represents the concentrations of chemical A after the simulation is run.
Image B
A surface image that represents the concentrations of chemical B after the simulation is run.

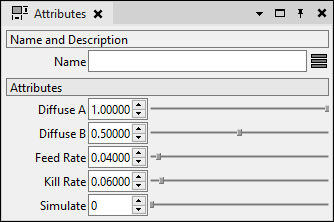

Attributes Panel
Diffuse A
Rate of diffusion of chemical A.
Diffuse B
Rate of diffusion of chemical B.
Feed Rate
Feeding rate of chemical A.
Kill Rate
Killing rate of chemical B.
Simulate
Number of steps the simulation is run.
Tutorial
This video tutorial shows how to use the Surface Reaction Diffusion node.
