Surface Scratches node

Left Toolbar > 3D icon Mesh Nodes > Surface Filter Surface Scratches

The Surface Scratches node paints procedural scratches over the surface.

For more information about surfaces see surface workflow.

input
Mesh Filter In Surface

output
Mesh Filter Out Surface Image

Procedure

To generate procedural scratches on a Surface:

  1. On the left toolbar choose Mesh Nodes > Surface Scratches. Mesh icon > Surface Groups icon
  2. Connect the Surface Map node to a Surface value and an Image value.

Mesh Filter node

Inputs

Surface
The surface value.

Outputs

Surface
The surface value.

The surface image with the scratches.

Attributes Panel

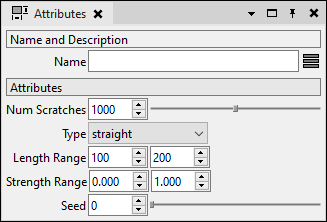

Surface Filter attributes

Num Scratches
Number of scratches to be generated.

Type

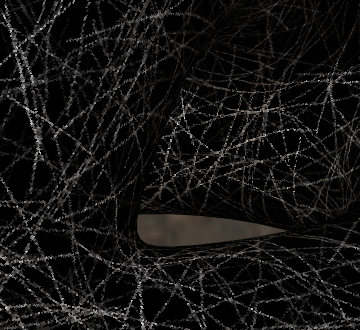

straight. Surface Scratches Straight

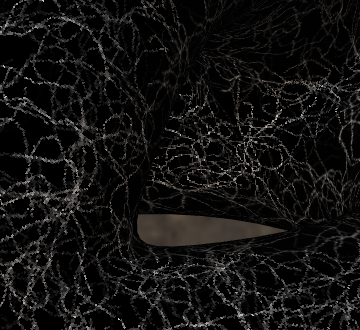

curved. Surface Scratches Straight

Length Range
The lenght of each scratch is a random value on this range.

Strength Range
The strength of each scratch is a random value on this range.

Seed
Seed for the random engine used by the scratches generator.
