Zig Zag Tiles
The Zig Zag Tiles node create seamless tile zig zag patterns from multiple image inputs.
input
output
Procedure
To create a seamless zig zag tile pattern:
On the left toolbar choose Layout Nodes > Zig Zag Tiles.
> Drag the Zig Zag Tiles icon into the Node Graph.
Connect the output of the images to be arranged out as tiles by the zig zag tiles node.

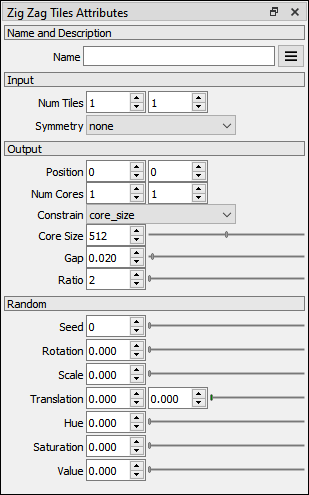

Attributes Panel
Input
*Num Tiles *
Number of tiles in x and y in the input images.
Symmetry
Symmetry of the input tiles.
none: The input tiles cannot be rotated.
rectangle: The input tiles can be rotated in 180° steps.
Output
Position
Position X and Y of the output image.
Num Cores
Number of tiles in X and Y of the output image.
Constrain
Criteria to constrain the output tiles.
coresize
tilesize
*Core Size *
Size X and Y of the output image.
Gap Gap in X and Y between output tiles.
Ratio Ratio of the output tiles.
Random
Seed
Seed for all the random variations.
Rotation
Adds random variations to the rotation of the output tiles. This values is relative to the Symmetry of the input tiles. A square tile can have a random rotation of maximum 90°. A rectangular tile can have a random rotation of maximum 180°.
Scale**
Adds random variations to the scale of the output tiles.
Translation
Adds random variations to the translation in X and Y of the output tiles.
Hue
Adds random variations to the hue of the color of the output tiles.
This attribute has effect only on RGB and RGBA images.
Saturation
Adds random variations to the saturation of the color of the output tiles.
This attribute has effect only on RGB and RGBA images.
Value
Adds random variations to the value of the color of the output tiles.
This attribute has effect only on RGB and RGBA images.
Video
Click here to watch How to create seamless Zig Zag tiles with PixaFlux.
