Value Add node

Left Toolbar > Value icon Value Nodes > Value Add icon Value Add node

The Value Add node adds the values at each pixel of all input images and the attribute value, and set it as the pixel value for the output image.

input
In1 Img VALUE image. Min: 0.0. Max 30.0.

In2 Img VALUE image. Min: 0.0. Max 15.0.

output
Out Img VALUE image. Min: 0.0. Max 45.0.

Procedure

To apply a Value Add:

  1. On the left toolbar choose Value Nodes > Value Add. Value icon > Value Add icon

  2. Drag the Value Add icon into the Node Graph.

    Value Add node

  3. Adjust the attributes of the Value Add node.

Inputs

Img One or more images of VALUE color mode.

Note. If the input image is not of VALUE color mode, it is converted to value color mode using the default settings.

Outputs

Img An image of VALUE color mode.

Attributes Panel

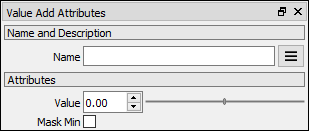

Value Add attributes

Value A constant value added to all pixels. Default: 0.0.

Mask Min If checked the minimum value of the first image is not modified.
