Surface Group Break node
Left Toolbar >
Mesh Nodes >
Surface Group Break
The Surface Group Break node takes as input a surface and a groups image, and breaks the groups into smaller groups.
For more information about surfaces see surface workflow.
input
Surface and Image (and equal filter)
output
Surface and Image (and equal filter)
Procedure
To break the groups on a Surface:
- On the left toolbar choose Mesh Nodes > Surface Group Break.
> - Connect the Surface Map node to a Surface value and an Image value.
Inputs
Surface The surface value.
The image with the groups.
See Surface Groups node.
Outputs
Surface The surface value.
The image with the new groups.

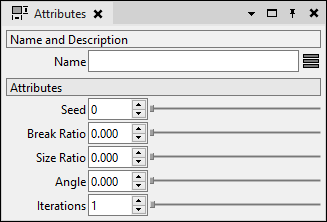

Attributes Panel
Seed
A random seed that affects how groups are broken.
Break Ratio
Controls the number of groups broken on each iteration.
Size Ratio
This ratio controls the size of the new groups. If a group is smaller than the average size multiplied by this value, it's not broken any more.
Angle
Groups are broken on the middle of their longest axis. This value randomizes the breaking angle around that middle point.
Iterations
Number of iterations the breaking process is applied.
